Threading Taps and Dies

S-431

CARBON STEEL CUT THREAD HAND TAPS B.S.W., B.S.F., U.N.F., U.N.C.

FEATURES

Thread angle BSW, BSF 55° UNC, UNF 60°

SPECIFICATIONS

Size in Inches		Thread per Inch			Standard Packing
Size in Inches	B.S.W.	B.S.F.	U.N.F.	U.N.C.	Standard Packing
1/16	60/1.2	-	-	-	Ten
3/32	48/1.7	-	-	-	-
1/8	40/2.55	-	-	-	-
5/32	32/3.2	-	-	-	-
3/16	24/3.7	32/3.95	-	-	-
7/32	24/4.4	28/4.65	-	-	-
1/4	20/5.1	26/5.3	28/5.5	20/5.2	-
9/32	20/5.85	26/6.1	-	-	-
5/16	18/6.5	22/6.75	24/6.9	18/6.6	-
3/8	16/7.9	20/8.2	24/8.5	16/8.0	-
7/16	14/9.2	18/9.7	20/9.9	14/9.5	-
1/2	12/10.5	16/11.1	20/11.4	13/10.8	-
9/16	12/12.1	16/12.5	18/12.9	12/12.2	Five
5/8	11/13.5	14/14.0	18/14.5	11/13.5	-
11/16	11/15.0	14/15.4	18/16.1	11/15.1	-
3/4	10/16.25	12/16.75	16/17.45	10/16.5	-
13/16	10/17.8	12/18.2	16/19.1	10/18.1	-
7/8	9/19.25	11/19.75	14/20.4	9/19.5	-
15/16	9/20.8	11/21.3	14/22	9/21.0	-
1.00	8/22.0	10/22.75	12/23.25	8/22.25	-
1.1/8	7/25.75	9/25.50	12/26.5	7/25.0	One
1.1/4	7/27.50	9/28.75	12/29.5	7/28.0	-
1.3/8	6/27.0	8/31.5	12/32.8	6/30.75	-
1.1/2	6/33.5	8/34.5	12/36.0	6/33.8	-
1.5/8	5/35.8	8/37.9	-	-	-
1.3/4	5/39.0	7/40.5	-	-	-
1.7/8	4.1/2/41.3	7/43.7	-	5/39.3	-
2.00	4.1/2/44.5	7/46.9	-	4.1/2/45.2	-

S-432

CARBON STEEL CUT THREAD HAND TAPS B.S.P.,B.S.C.

FEATURES

Thread angle 55°

SPECIFICATIONS

B.S.P. parallel			B.S. Conduit Electric
Size in Inches	Thread per Inch.	Std. Packing	Size in Inches.	T.P.I	STD packing
1/8	28/8.75	TEN	-	-	-
1/4	19/11.8	TEN	-	-	-
3/8	19/15.25	-	-	-	-
1/2	14/19.00	FIVE	1/2	18/11.10	FIVE
5/8	14/21.00	-	5/8	18/14.25	-
3/4	14/24.50	-	3/4	16/17.45	-
7/8	14/28.25	-	-	-	-
1	11/30.75	ONE	1	16/23.80	-
1.1/4	11/39.50,	-	1.1/4	16/30.15	ONE
1.1/2	11/42.20	-	1.1/2	14/36.10	-
1.3/4	11/51.20	-	-	-	-
2	11/57.00	-	-	-	-

S-433

CARBON STEEL CUT THREAD HAND TAPS MILLIMETERS

SPECIFICATIONS

Thread Angle 60°			Special Pitches
Size in MM	Pitch	Standard Packing	Size in MM	Size in MM	Size in MM
2	0.4/1.6	TEN	2.5x45/2.0	25x1.5/23.5	48x3.0/45.0
3	0.5/2.5	-	2.6x45/2.1	25x2.0/23.0	48x4.0/44.0
4	0.7/3.3	-	3.5x6/2.9	26x1.5/24.5	50x3.0/47.0
5	0.8/4.2	-	4.5x75/3.7	26x2.0/24.0	50x4.0/46.0
6	1.0/5.0	-	5.5x9/4.6	27x1.5/25.5
7	1.0/6.0	-	6x.75/5.25	27x2.0/25.0
8	1.25/6.75	-	7x75/6.25	28x1.5/26.5
9	1.25/7.75	-	8x75/7.25	28x3.0/25.0
10	1.5/8.5	-	8x1.0/7.0	30x1.5/28.5
11	1.5/9.5	-	9x1.0/8.0	30x2.0/28.0
12	1.75/10.25	-	10x1.0/9.0	30x3.0/27.0
14	2.0/12.0	Five	10x1.25/8.75	33x1.5/31.5
16	2.0/14.0	Five	11x1.0/10.0	33x2.0/31.0
18	2.5/15.5	-	12x1.0/11.0	33x3.0/30.0
20	2.5/17.5	-	12x1.25/10.75	36x1.5/34.5
22	2.5/19.5	-	12x1.5/10.5	36x2.0/34.0
24	3.0/21.0	-	13x1.75/11.25	36x3.0/33.0
25	3.0/22.0	-	14x1.0/13.0	39x1.5/37.5
27	3.0/24.0	One	14x1.25/12.75	39x2.0/37.0
30	3.5/26.5	-	14x1.50/12.5	39x3.0/36.0
33	3.5/29.5	-	15x2.0/13.0	40x1.5/38.5
36	4.0/32.0	-	16x1.25/14/75	40x2.0/38.0
---	---	-	16x1.5/14.5	40x3.0/37.0
39	4.0/35.0	-	18x1.50/16.5	42x1.5/40.5
40	4.0/36.0	-	18x1.75/16.25	42x2.0/40.0
--	--	-	18x2.0/16.0	42x3.0/39.0
--	--	-	20x1.5/18.5	42x4.0/38.0
42	4.5/37.5	-	20x2/18.0	45x1.5/43.5
--	--	-	22x1.5/20.5	45x2.0/43.0
45	4.5/40.5	-	22x2.0/20.0	45x3.0/42.0
48	5.0/43	-	24x1.5/22.50	45x4.0/41.0
50	5.0/45	-	24x2.0/22.0	48x2.0/46.0

S-434

CARBON STEEL CUT THREAD HAND TAPS BSB, NPT, BSPT

FEATURES

Thread angle BSB 55° NPT/BSPT 60°

SPECIFICATIONS

Hand Taps Brass Thread(BSB)			Hand Taps NPT/BSPT
Size in Inches	TPI	Std Packing	Size in Inches	TPI		Std Packing
Size in Inches	TPI	Std Packing	Size in Inches	NPT	BSPT	Std Packing
7/32	26	TEN	1/8	27	28	TEN
1/4	26	TEN	1/4	18	19	TEN
9/32	26	TEN	3/8	18	19	TEN
5/16	26	TEN	1/2	14	14	FIVE
3/8	26	TEN	5/8	-	14	FIVE
7/16	26	TEN	3/4	14	14	FIVE
1/2	26	TEN	7/8	-	14	FIVE
9/16	26	TEN	1"	11 1/2	11	ONE
5/8	26	TEN	1.1/4	11 1/2	11	ONE
3/4	26	TEN	1.1/2	11 1/2	11	ONE
7/8	26	TEN	2"	11 1/2	11	ONE
1"	26	TEN	-	-	-	-
1"	24	TEN	-	-	-	-

S-435

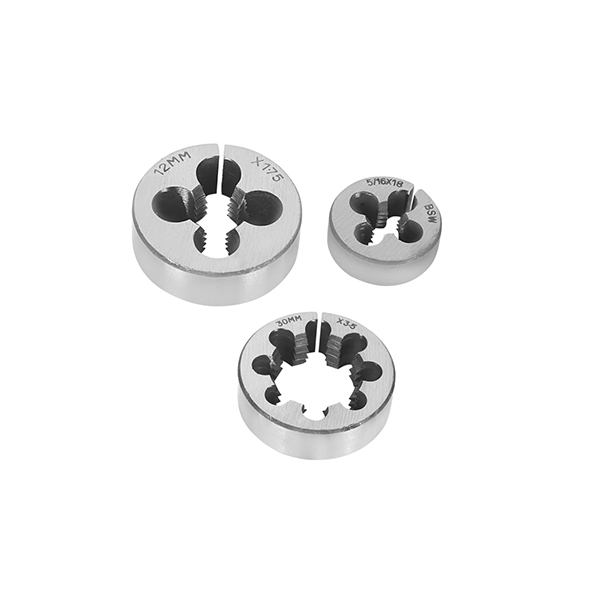

CARBON STEEL ROUND DIES

SPECIFICATIONS

Size	Outer Dia(inches)
1/16 BSW, 3/32 BSW, 6BA, 7BA, 8BA, 9 BA, 10 BA, 2x0.4, 2x.45, 2.5x.45, 2.6 x0.45, 0 UNF TO 10 UNF, 0 UNC TO 10 UNC	13/16
1/8, 5/32, 3/16, 7/32, 1/4, BSW / BSF / UNF / UNC, 3x.5, 3x.6, 3.5x.6, 4x.7 , 5x.8, 6x1.0, 0 BA TO 5 BA	13/16
1/4, 5/16, 3/8, BSW / BSF / UNF / UNC / SPECIAL 6x1.0, 7x1.0, 8x1.25, 9x1.25/ 10x1.5, 1/8 BSP, 18 NPT/BSPT	1
5/16, 3/8, 7/16, 1/2, 9/16, 5/8, BSW/BSF/UNF/UNC/SPECIAL, 10x1.5, 11x1.5, 12x1.75, 13x1.75, 14x2.0, 16x2.0, 1/4 BSP, 3/8 BSP, 1/2, 5/8, 3/4, CONDUIT, 9/16 BSCY, 1/8,3/8 NPT/BSPT	1.1/2
11/16, 3/4, 7/8, 1 BSW / BSF / UNF / UNC / SPECIAL, 18x2.5, 20x2.5, 22x2.5, 24x3.0, 1/2, 5/8, 3/4, BSP, 1 CONDUIT, 1/2, 5/8, 3/4 NPT/BSPT	2
1.1/8, 1.1/4, BSW / BSF / UNF / UNC, 20x2.5, 22x2.5, 24x3.0, .1/2, 5/8, 3/4 BSP, BSPT/NPT, 1 CONDUIT	2.1/4
1.1/8, 1.1/4, BSW / BSF / UNF / UNC, 1.370 BSCY, 27x3.0, 30x3.5, BSW / BSF / UNF / UNC, 1 BSP/BSPT/NPT	2.1/2
1.3/8, 1.1/2 BSW / BSF / UNF / UNC / SPECIAL, 33x3.5, 36x4.0, 1.1/4 BSP/NPT/BSPT	3
1.3/4, 2, BSW / BSF / SPECIAL, 40x4.0, 42x4.5, 45x4.5, 48x5.0, 50x5.0,1.1/2 BSP/BSPT/NPT	4

S-436

HSS HAND TAPS GROUND THREAD

SPECIFICATIONS

Size (in mm)	Size(in inches) BSW	Size (in B.S.P.)	Size(in NPT/BSPT)
3x0.5	1/8"	1/8"	1/8"
4x0.7	5/32"	1/4"	1/4"
5x0.8	3/16"	3/8"	3/8"
6x1.0	1/4"	1/2"	1/2"
8x1.25	5/16"	5/8"	3/4"
9x1.25	3/8"	3/4"	1"
10x1.5	7/16"	7/8"	1-1/4"
11x1.5	1/2"	1"	1-1/2"
12x1.75	9/16"	1-1/4"	2"
14x2.0	5/8"	1-1/28"	2-1/2"
16x2.0	11/16"	1-3/4"	3"
18x2.5	3/4"	2"	3-1/2"
20x2.5	7/8"	2-1/4"	4"
22x2.5	1"	2-1/2"
24x3.0	1-1/8"	2-3/4"
25x3.0	1-1/4"	3"
27x3.0	1-3/8"	3-1/2"
30x3.5	1-1/2"	4"
33x3.5	1-5/8"
36x4.0	1-3/4"
39x4.0	2"
42x4.5	2-1/4"
45x4.5	2-1/2"
48x5.0	2-5/8"
52x5.0	2-3/4"
56x5.0	3"
60x5.5	3-1/2"
